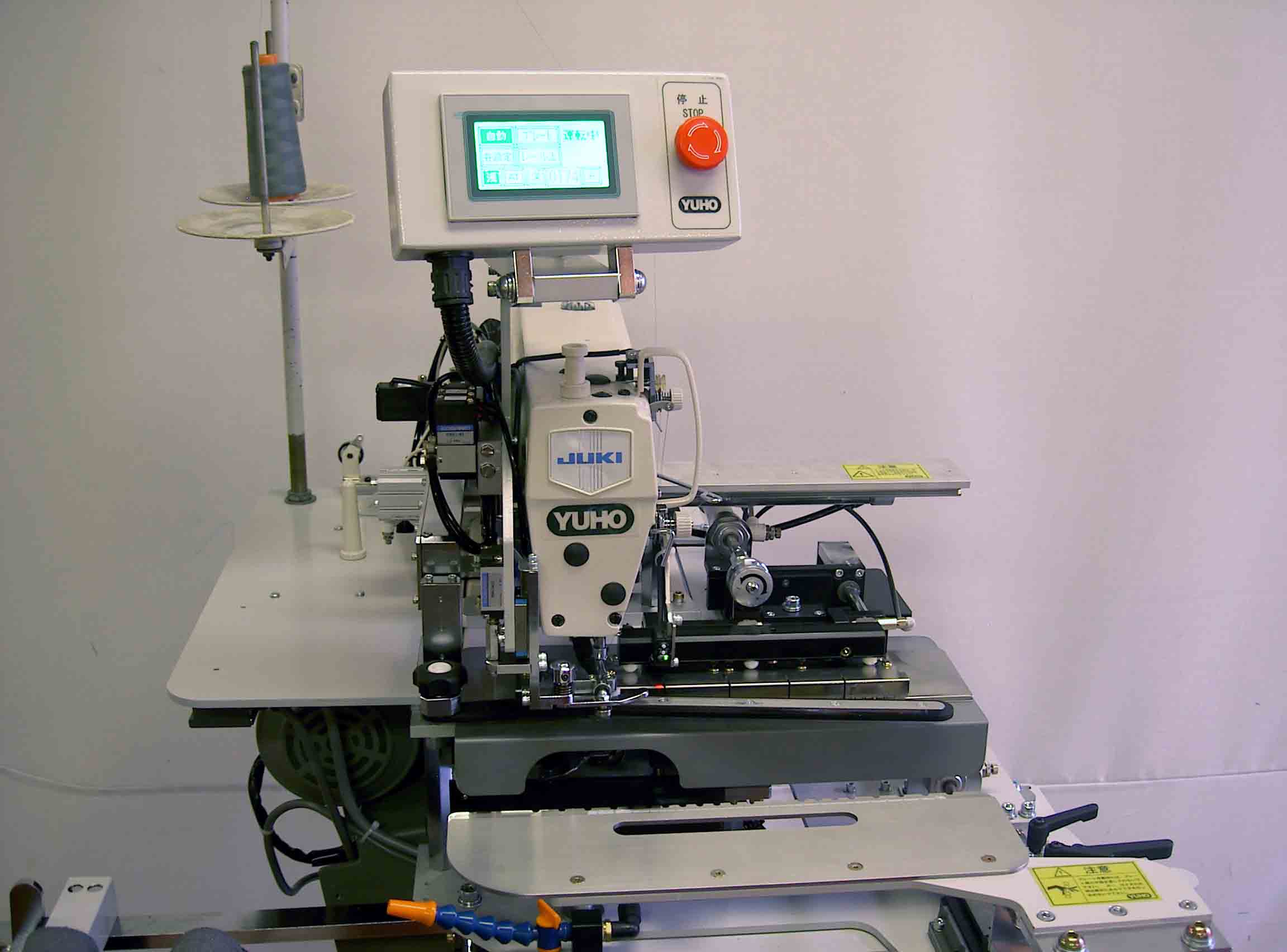

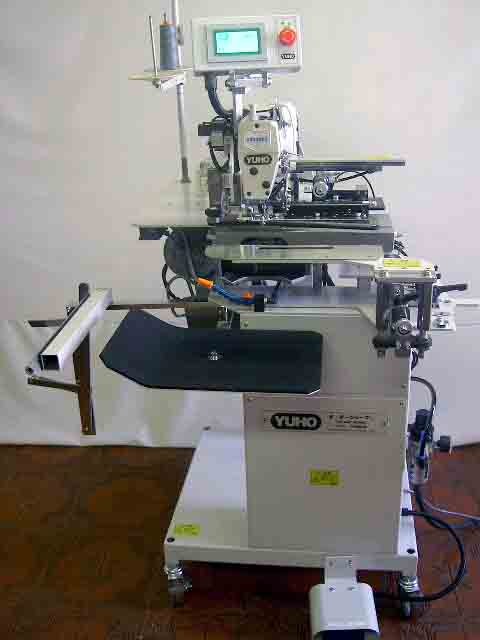

■ NEW DART SEAMER U-3002-E ■
■ NEW TUCK DART SEAMER U-3002-E/03 ■
| |
DART SEWING, "SUPER HIGH SPEED" SAVING "THE COST & SPACE
"
IS NOW FINALIZED TO MEET TO THE CUSTOMER'S DEMANDS FULLY.
UTIMATELY ELIMINATING "USELESS" AND SEEKING FOR "FUNCTION
& HIGH PRODUCTIVITIES"
IS PROOVED BY 40 YEARS ACHIEVEMENTS !!
Waist size is followed on an accurate Dart Sewing !!
Just by 1㎜ size diffeence makes 2㎜ difference 4 dart sewing makes 8㎜ size difference shows
how important point for Dart sewing.
NEW DART SEAMER is now ultimately completed for "Super High Sewing
Speed",
"Size Accuracy" , "Consist Sewing", promising "Cost Saving".
Available "Normal Dart Sewing" & "Tuck Dart Sewing"
with guide rail converion.
| SUPER HIGH SPEEDSEWING | Finally, NEW DART SEAMER has achieved super high speed sewing cycle. This allows 6,580 darts per 8H. Cycle time keeps just 3.5sec per 10㎝. Overlapped working is alowed simply, quickly, just enough to load a fabric. On the loading plate and set on the designed measure. When start pedal on and plate returning to home position, load the next fabric successively. Keeper holds down the fabric and rail feeds to the needle point, and sewn and clamped on the stacker. |
| LCD TOUCH PANEL DISPLAY | With LCD touch panel, every device adjustment, correction, running. Operation are available with display touching. This supports the beginners operation smoothly. |
| DART LENGTH CONVERSION | With clamp lever under the table, dart depth conversion is allowed with
synchronized plate, gauge, keeper. Max. depth 50㎜ and Min. 10㎜ is allowed in 200㎜ length. |
| "0" DART POINT ADJUSTMENT | When fabric thick is differed extremely, "0"-point is adjustable
with thumb +- screw under the table accurately. Originally designed gauge promises to make "0"-point to the plate-edge. |
| SIMPLIFIED TUCK DART SEWING | Originally designed YUHO NEW DART SEAMER promises consistent high producive
dart Sewing, instantly to the beginners. For the knee-lining pants, just enough to load a knee-lining pant on the plate, and press the start pedal on. Keeper and guide rail holds down the knee-lining pants tightly for an accurate tucking. |
| HIGH FLEXIBLE KEEPER HOLDING FROM LIGHT TO JEANS FABRICS | Keeper holds down the fabric on the plate tightly, accurately when driven
to the gauge. Aligned keeper leaf-spring supports holding. Completely such as thinner or ticker fabrics as jeans. For maintenance, keeper & gauge is removable at one time. |
■ NEW TUCK DART SEAMER U-3002-E/03 ■
| TACK DART AUTO CHANGER | Tuck dart sewing depth is available to 2 sizes, "S & L" as
10㎜ (S) as 20㎜(L), 10㎜ ( min. ) ～ 30㎜ ( max. ). With selector switch ( S & L ), S or L size orauto auto ( alternate automatically ) selection is available. |
| DAILY OUTPUT | ★ Regular dart sewing : 6,580 darts / 8H 3.5sec per 1 seam ★ Tuck dart sewing : 7,000 darts / 8H 3.0sec per 1 seam ★ Dart length : 10㎝, 3㎝ / 14 stitches ★ Allowance : 20% approx. |
|---|---|
| MAIN DEVICES | ★ Dart angel change clamp lever ★ Tuck darts ( S&L ) auto changer (03 TYPE) ★ Needle thread clamper ★ Air gun ★ Thread Breakage Detector (T.B.D) <OPTION> |
