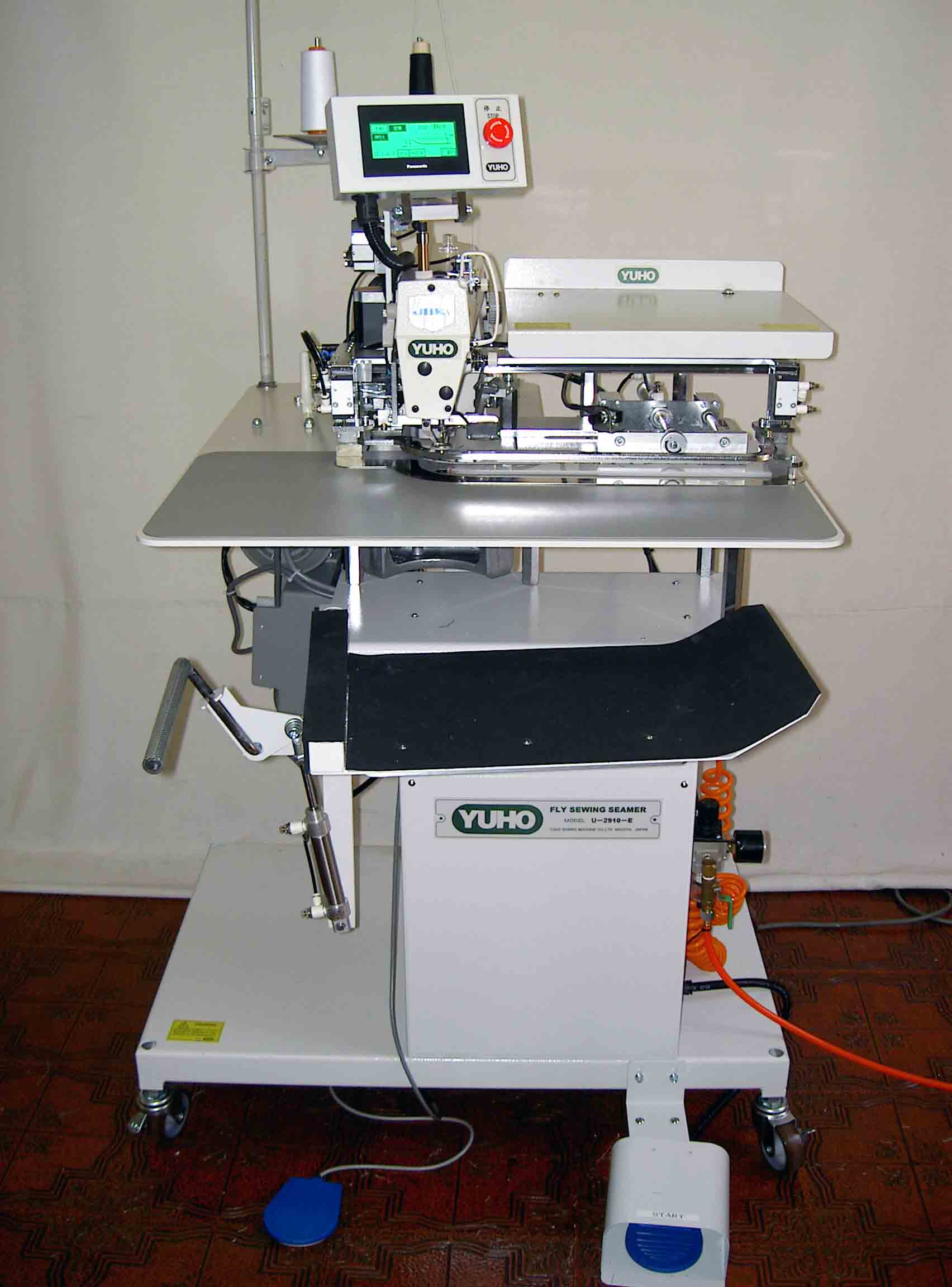

‘@NEW FLY SEAMER PANTS & JEANS FLY STITCHING@U-3104-E@‘
| |
YUHO FLY SEAMER PROMISES CONSISTENT "J " SEAM LINE WITH ORIGINALLY DESIGNED
PULSE MOTOR PRESSER GUIDE FEEDING MECHANISM !!
WITH "XExh PULSE MOTOR & LED TOUCH PANEL,
VARIABLY CURVED "J" SEAM LINE IS ALLOWED FREELY.
"DOUBLE-STITCHING" FOR THE JEANS PANTS IS ALSO
PROGRAMMABLE UPTO 20 SEAM PATTERNS."

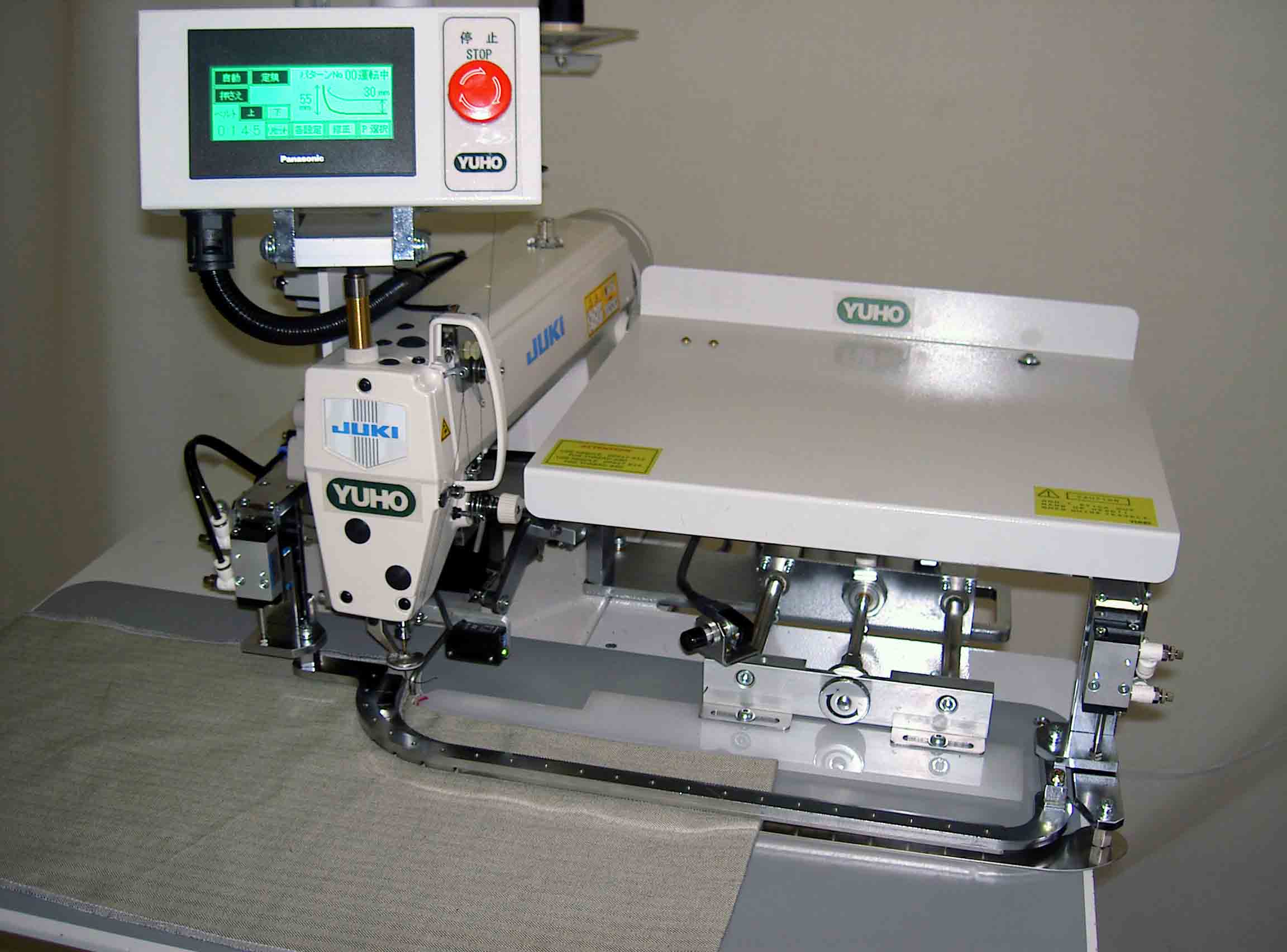

| "XY" PULSE MOTOR PRESSER GUIDE FEEDING MECHANISM | With pulse motor, pattern presser guide, feeding "J "seam line
as featured pant front is sewn accurately. Variably curved "J " seam line is adjustable freely and consistently. Also, variable to double-stitching and stitching margin is convertible freely. With conversion of pattern presser pad, pants fly sewing is convertible to jeans. |
| PRESSER GUIDE WITH LEAF-SPRING | For complete absorbtion to the thick-difference on the belt part, presser guide with Leaf-springs is attached under the presser guide. |
| SIMPLIFIED OPERATION WITH LED TOUCH PANEL | With LED touch panel, "J "seam line is programmable upto 20 patterns. Also, available to make "J" line correction and stitch-margin adjustment. Another device adjustment is no need. |
| ZIPPER HOLDING KEEPER | Originally designed zipper holding keeper extends and hold down the "J"
bottom part never to get up the bottom part tightly in place of hand working. Also, keeper helps to make an accurate sewing start position. |
| SANDWICH PRESSER PAD FEEDING | Originally designed sandwich presser guide feeding mechanism promises free from seam fail, skewed seam completely to the knee-lining pants. Sandwich presser guide holds down the pants tightly with cylinders feeds on. |
| FLEXIBILITY SEWING MODES | With photo-sensor detection NO, sewing makes a stop instantly. Max. sewing length is upto 350o. Stitch margin is allowed 25 ` 35o. "J" seam curveture is allowed 50 ` 70o fleely. With LED programming, avaiable to make sewing stop on the belt-bottom and belt-top according to the belt width freely. This can omit to attach the devices and no need of adjustment. |
| FLEXIBILITY TO "J" SEAM LINE | "J "seam line is removable to Top/Bottom, Left/Right by 5o from
the "P" point and "P" point is removable upto 20o
max. Available to make irregular "J "seam lines flexibly. The curved line is changeable seam line along to the "J "seam line loosen the fix screws. |
| DOUBLE STITCHING FOR JEANS | Double-stitching width is available upto 8o freely. "J" curve line is available freely. With conversion of pattern presser pad, applicable to programmable upto 20 patterns (Max) on the LED panel. With photo-sensor detection, applicable to the sewing length variation accurately. |
@
| DAILY OUTPUT | @@2,000 seams per 8H@@( 20% allowance ) |
|---|---|
| MAIN DEVICES | @@XY Pulse Motor Feeding Mechanism @@LED Touch Panel @@20 Pattern Programming @@Pattern Correction Mode @@Gauge & Zipper Holding Keeper @@Sandwich Presser Guide Feeding @@Belt-bottom/Top stop selector switch @@Needle foot presser @@2nd needle thread tension @@Stacker @@Working table vacuuming <OPTION> @@Bobbin Auto Winder (BW-100) <OPTION> @@Thread Breakage Detector ( T.B.D. ) @@Air gun |
