‘@ KNIT POCKET SETTER@U-3206-E/1416@‘
| @ |

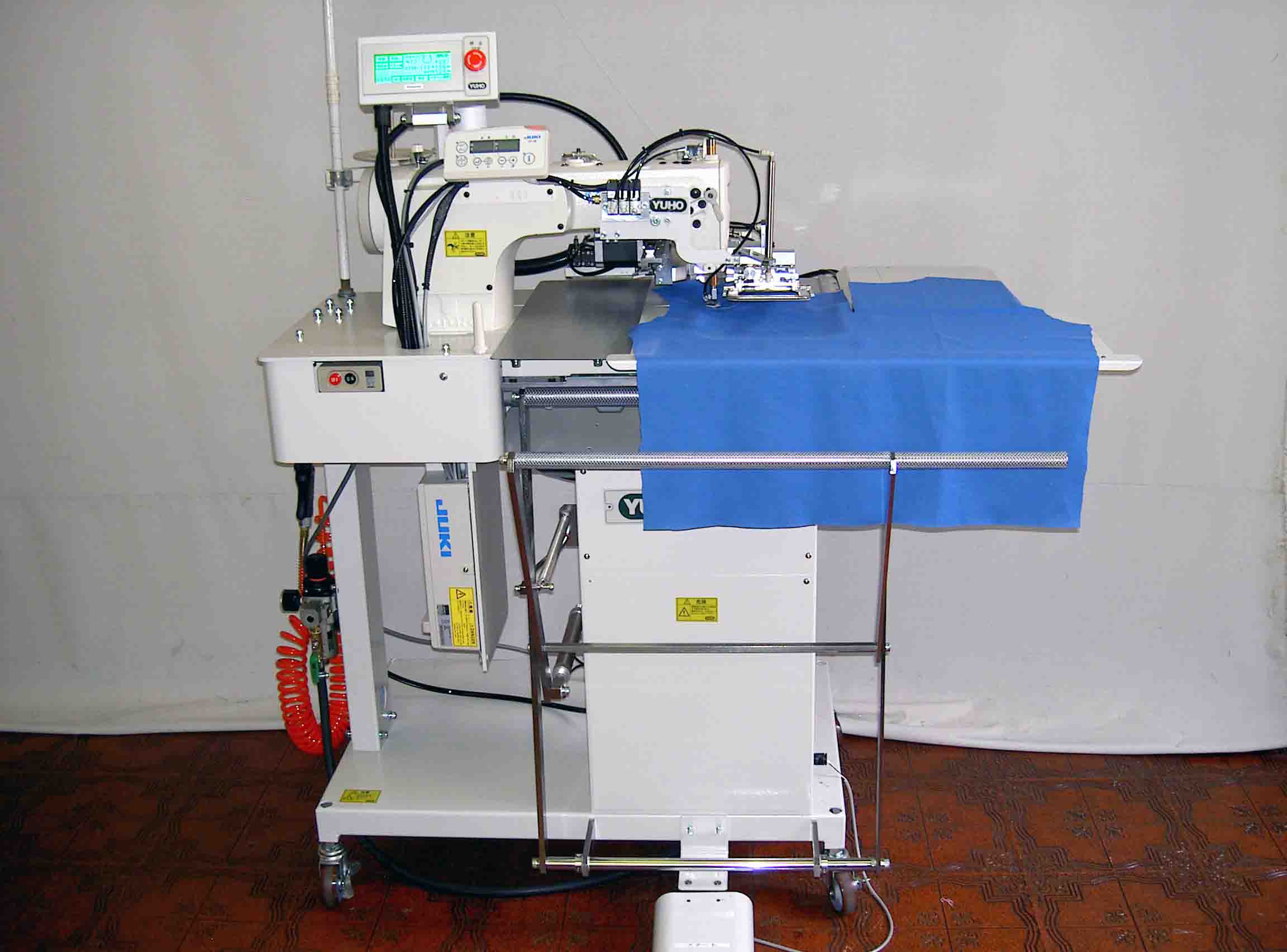

PATENTED YUHO ORIGINALLY DESIGNED KNIT POCKET SETTER
U-3206-E/1416 IS NOW UNVEILED !!
TOP FEATURED POINT ALLOWS TO FOLD AND ATTACH THE POCKETS SUCH
VERY DIFFICULT FABRICS AS STRETCHY KNITTED EASILY, AUTOMATICALLY,
NEVERTHLESS THE EXTREMELY LOWER COST OF PATTERN GAUGE
THAN THE OTHER POCKET SETTERS.
ADDITIONALLY, AVAILABLE TO MAKE THE SMALLER SIZE,
THE DOUBLE-STITCH SEWING.
| MONO-FRAMED POCKET FORMING | With originally designed Mono-framed pattern sewing, pocket-piece forming
is allowed accurately against the difficult fabrics. Pocket-piece is folded in the pattern gauge, and sandwiched with presser pat tightly. Pattern sewing is allowed accurately synchronized with the machine presser holding down. Particularly, very advantageous point is the fabric against iron pressing or Folding. |
| AVAILABLE DOUBLE-STITCHING & THE SMALLEST SIZE POCKET ATTACHING | Available double-stitching simply such as stretchy knit fabric without
extra charge !! Particularly, round corner double-stitching is required a lot of skill and handling time. This unit promises high productivities even to all of the beginners. Additionally, available to the smallest size pocket sewing without extra charge !! |
| TWO UNITS OPERATION BUT SINGLE OPERATOR ALLOWED | Available to operate two different working process with single operator due to overlapped working, loading, stacking automatically. When a lot of production, single operator is allowed to operate 2 units, even if one is out of order, production can keep half of lot. This is very serious management in the factories !! |
| SIMPLIFIED BUT ACCURATE POCKET SETTING | Available to enter the designed patterns and to make the pattern correction
to the stitch-margin. Also, available to correct the one-side margin or expansion or deduction available with LCD touch panel simply. With "Memory Loader", additional pattern is allowed to enter freely. (option) |
| FREE FROM THREAD BREAKAGE WITH TAPE FOR KNIT FABRIC | Thread breakage can be free from the strechy fabrics such as knitted fabrics
when inserting thinner tape. Tape is enough to set on the pocket-bottom part. |
| HIGH ACCURACY, HIGH DURABILITY PROMISES BEST PATTERN SEWING | XY feeding mechanism maintains by the finest and high durable lineaway with the 2 Top/Bottom stage. Sewing head is equiped with JUKI DDL-9000B direct drive. With long-arm head, loading space is enlarged extremely. With operation working improvement, consistent quality, skilless, high-productivities are promised. |
| SIMPLIFIED GAUGE CONVERSION | Pattern gauge conversion is allowed a few minutes by the beginners. This is advantageous to the wide variation to pocket type and fabrics. No adjustment is allowed !! |
| FUNCTIONAL STACKER | With functional stacker, over-lapped working is allowed and promises 2 units operation by single operator only. |
| VARIATION TO MAINTENANCE | No adjustment is allowed when tilting or tilting back. For safety operation, test sewing, device step checking are programmed on the LCD touch panel free from the troubles. |
| MAIN DEVICES | @@ "X/Y" stepping motor @@Standard pattern gauge & software @@Needle foot presser @@LCD touch panel display @@Stacker @@Thread Breakage Detector ( T.B.D ) @@Bobbin thread counter @@Air gun @@Caster with 2-brakes |
|---|---|
| OPTION | @@Optional pattern gauge & software @@Bobbin winder @@Memory loader |
