SHIRT COLLAR RUN-STITCH MACHINE ( with AUTO PATTERN ENGRAVING CUTTER )

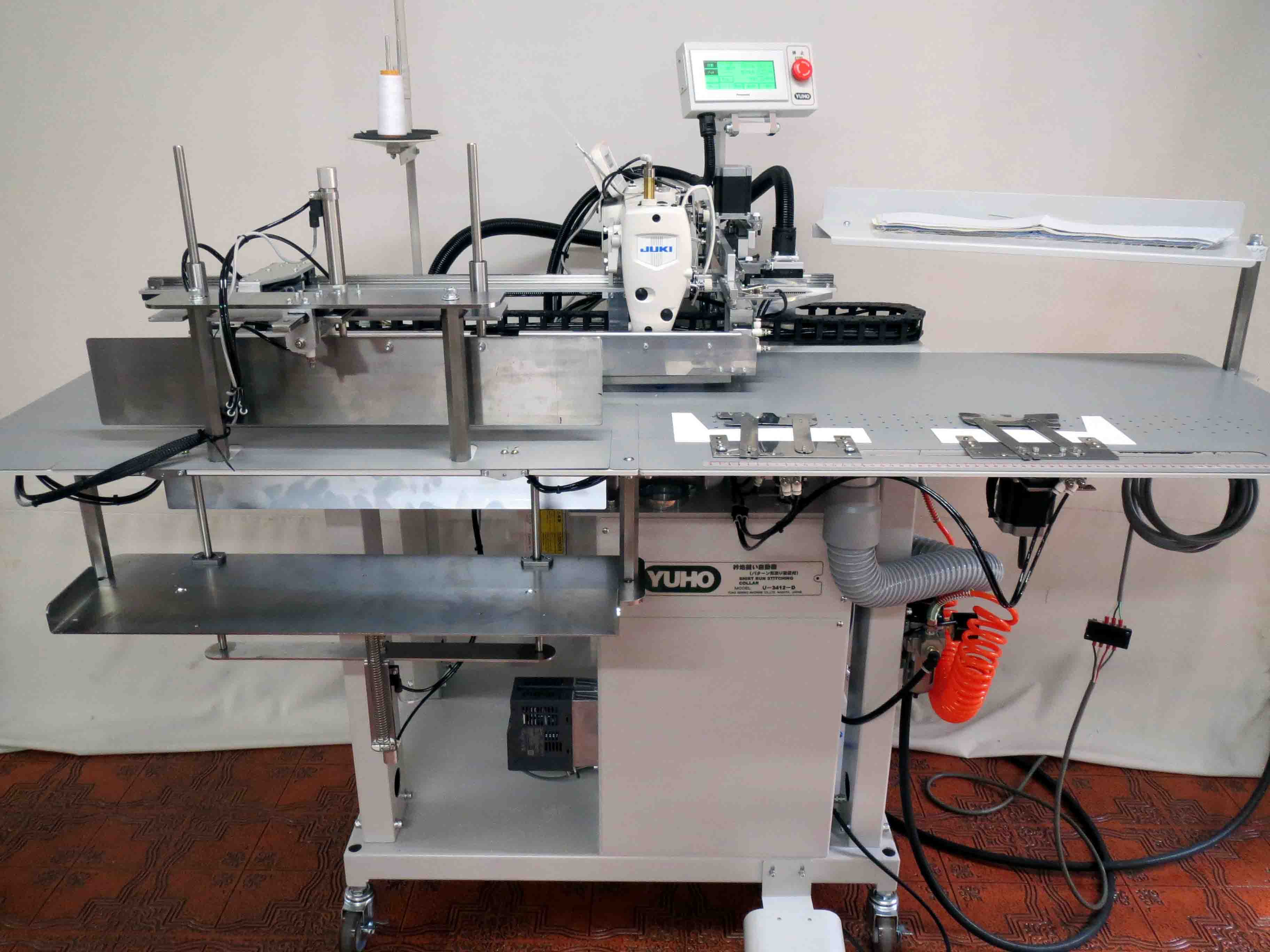

■　SHIRT COLLAR RUN-STITCH MACHINE ( with AUTO PATTERN ENGRAVING CUTTER )　U-3412-E ■　

ORIGINALLY DESIGNED COLLAR RUN-STITCH MACHINE
COLLAR WITH MAKING FULLNESS AUTOMATIZED MACHINE IS NOW DEBUT ON !!

COLLAR RUN-STITCHING IS REQUESTED NOT ONLY OVER-LAPPED SEAMING
BUT ALSO WITH FULLNESS SEAMING TO
THE COLLAR TOP-END U-3412-E COLLAR RUN-STITCH MACHINE HAS SOLVED THIS TOP DIFFICULT POINTS AND PERFORMED COMPLETELY !!
PATTERN ENTERING IS ALLOWED SIMPLY WITH THE SEAM POINTING. NORMALLY,
MAKING PATTERN OF FABRIC PRESSER GUAGE TAKES MUCH TIME,
BUT, PLASTIC PATTERN GAUGES CAN BE CUT OUT AND MADE FULL AUTOMATICALLY AS DESIGNED.
SEAM PATTERN AS PATTERN PROGRAMMING FULL AUTOMATICALLY ON THE LCD PANEL,
COLLAR SIZE VARIATION IS AVAILABLE TO 300 ～ 600 ㎜.
FABRIC PRESSER PAT IS REMOVABLE TO THE U-3412-E CAN MAKE PLASTIC PATTERN GAUGE AND SIZE VARIATION FULL AUTOMATICALLY,
THE ONLY ORGINALLY DESIGNED COLLAR RUN-STITCHING MACHINE.

4 AXILES PULSE MOTORS, AN ENTER OF PATTERN SOFT & PRESSER PAT GAUGES ARE ALLOWED IN THE FACTORIES SIMPLY AND FREELY	An enter of various collar run-stitching paterns is allowed with the seam pointing mode simply. With mirror seam pointing, pointing work is just enough on half side. Maximum pointing is 24. According to the collar types, collar seaming line is adjustable with correction mode.

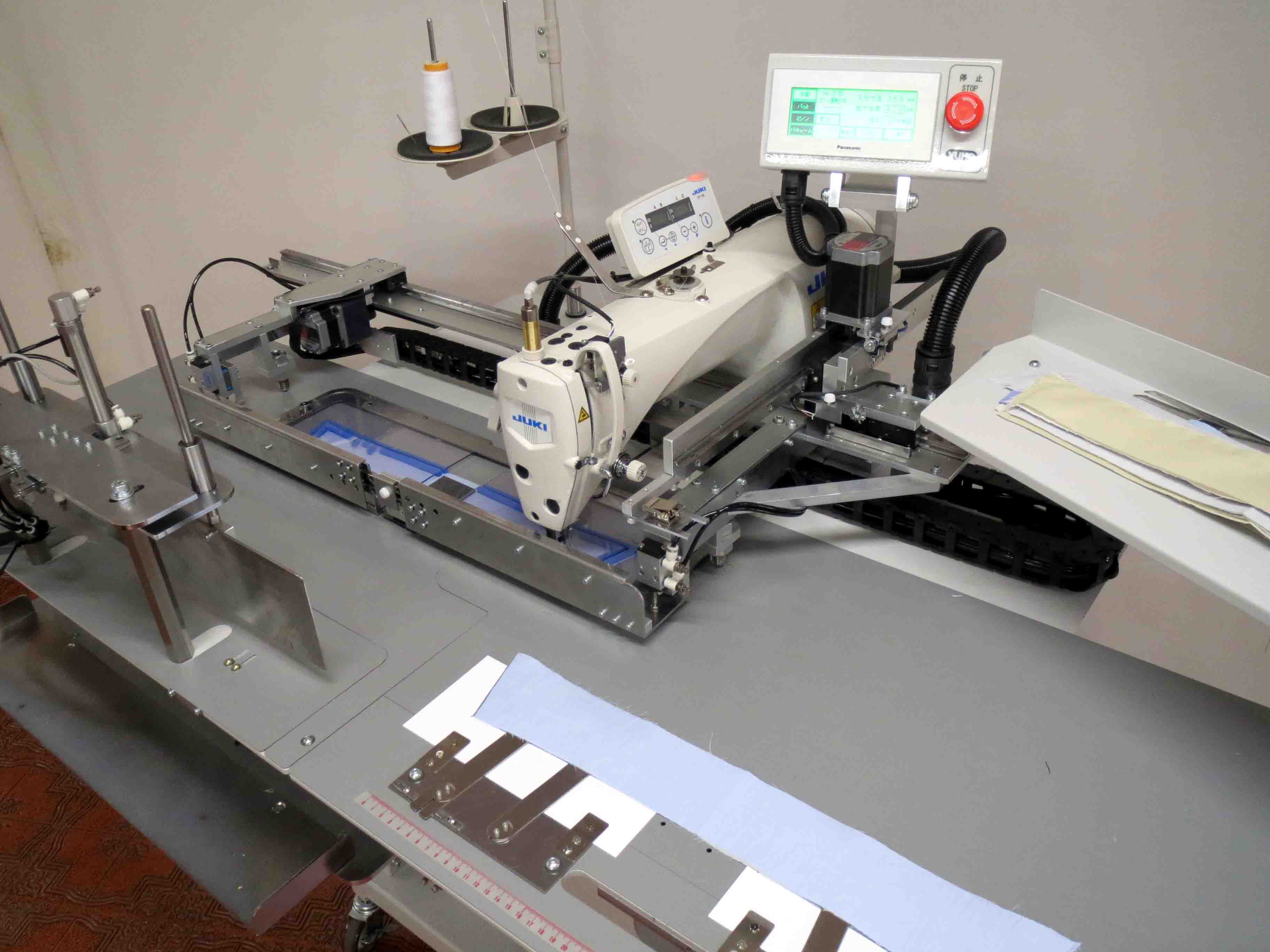

COLLAR SIZE VARIABLE WITH SIZE ENTERING	Large size variation can correspond automatically on the LCD touch panel. Fabric loading gauge positioning and presser pat guide synchronizes along to the collar size automatically. Powerful vacuuming table supports the quick and an accurate loading.
WIDE SEWING AREA	Sewing area is available width 100 ㎜×length 60 ㎜ Coller size is adjustable to 360 ㎜～ 600 ㎜
WIDE VARIATION TO COLLAR PATTERNS	Various collar shapes ROUND ～SHARPEN POINT are applicable freely. Collar with the band is also available freely.
WIDE SEAMING MODE VARIATION WITH FULLNESS TO THE COLLAR	Top feature point of U-3412-E is allowed with fullness. Fullness device is removable acording to the fullness volume easily.
EASY PRESSER PAT & LOADING GAUGE CONVERSION	with the powerful magnet, conversion to the various presser pa & loading. Gauge can be corresponded quickly. Pattern variation is allowed to 30.
AUTO-PATTERN SYNMMETRICAL ENGRAVING CUTTER TO THE LEFT/RIGHT	Auto pattern engraving cutter is equipped with the unit and supports an easy and quick presser pat making in the factories. Set the plastic plate to engraving guide along to the seam pattern. Left/Right different 2 shapes are engraved full automatically. This can save the making cost and time extremely. Cutting dust is gathered into the dust box.
ACCURATE SYMMETRICAL COLLAR SHAPE AND SIZE	Fabric is fed to the stacking position and dropped down automatically. When the stacked fabrics get to the designed position, fabrics are pull out automatically.
MARKING LIGHT FOR COLLER TOP-POINT (OPTION)	Marking light for an accurate setting coller top-points is available optionally.
FUNCTIONAL STACKER	With stacker, the fabric is stacked on completelyand pick up automatically when fabric is get on to the designed position.
THREAD BREAKAGE DETECTOR	When needle thread is broken, T.B.D. makes a sewing cycle stop all at once.

MAIN DEVICE	◆ LCD touch panel display 　◆ Auto loading gauge travel 　◆ Auto seam length setter travel 　◆ Gauge & pat magnet removal 　◆ Collar pattern pointing 　◆ Powerful table vacuuming 　◆ 3 position system 　◆ Stacker with picking up 　◆ Auto pattern shape engraving cutter 　◆ Fullness 　◆ Thread Brekage Detector (T.B.D.) 　◆ Air gun
