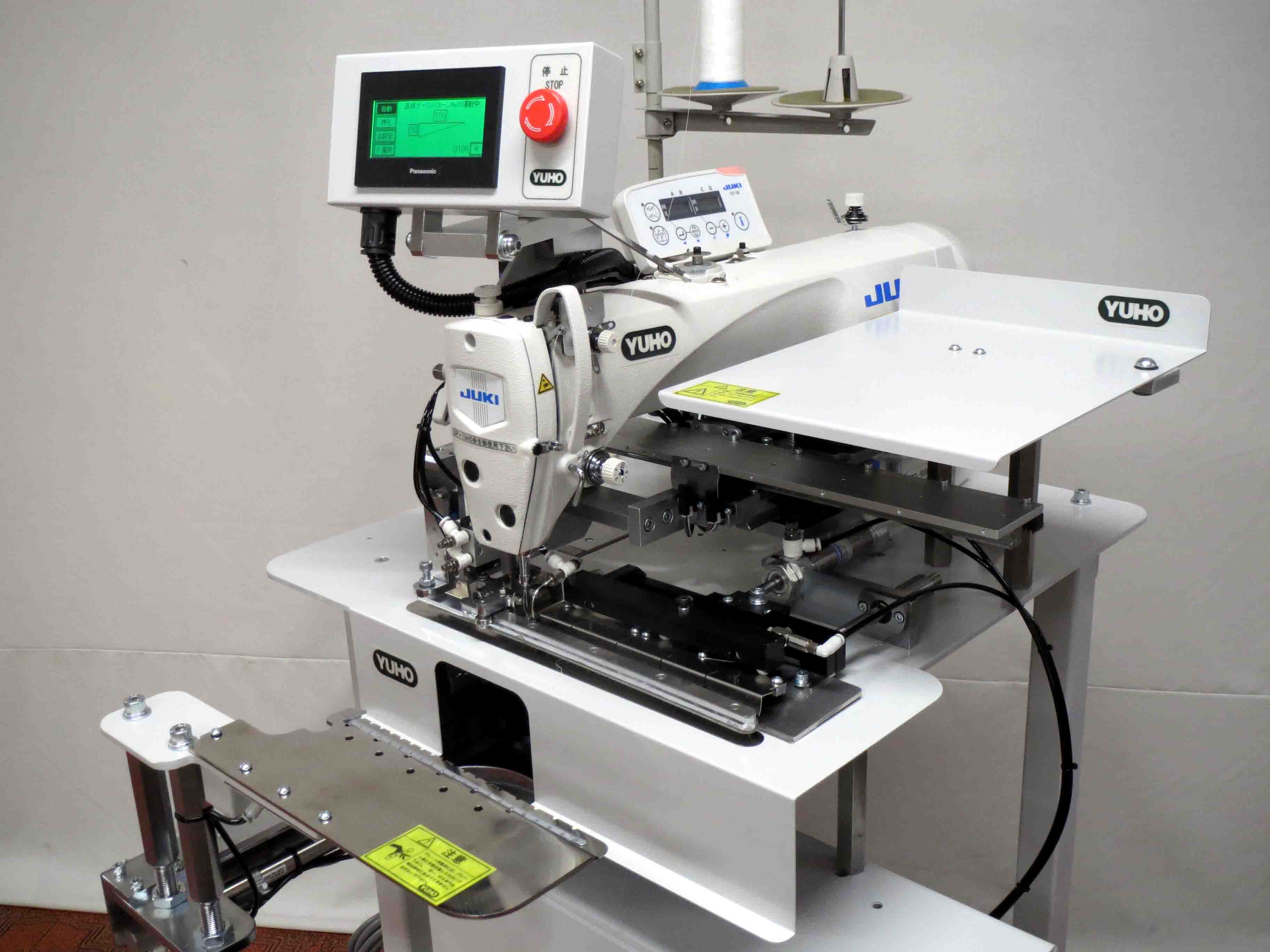

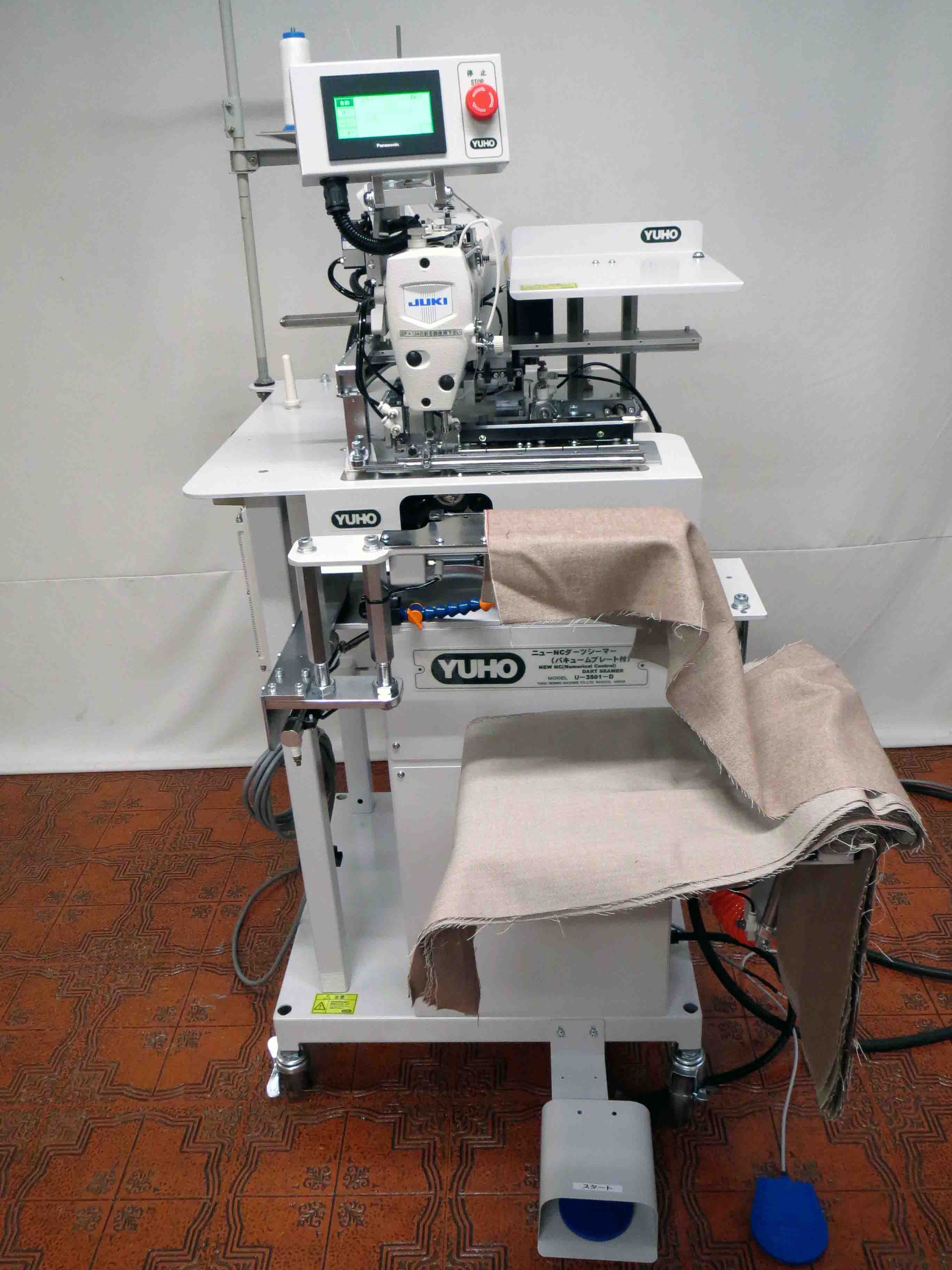

■ NC DART SEAMER with vacuumed plate U-3702-E ■
| |
ULTIMATELY DESIGNED DART SEWING UNIT
NC DART SEAMER U-3702-E IS NOW JUST ON DEBUT !!
FREELY AVALABLE NORMAL OR FRONT TUCK OR BACK-TUCK DARTS
WITH IN-CURVED OUT-CURVED SEWING,
PROMISES TO CORRESPOND TO LARGE DARTS VARIATION.
| FINALIZED NC DART SEAMER | No need of guide rail making to correspond to the dart patterns and the
sizes. "X" feeding ( length ) , "Y" feeding ( width ) , "Angle" are programmable numerically. For front tacking, slant dart line varies along to the depth, but whole sewing length is computed accurately. Newly designed "X・Y" feeding is programmed with 2 pulse motors and the finest linerway. |
| WIDE SEWING AREA | The fabric fed to the needle with the loading plate is held down
with the keeper and the sandwiched guide rail tightly makes free from distortion
or twisting for the lining trousers and the pattern sewing. For the dart sewing, free from dimple is promised. |
| SEWING START FROM THE WAIST | Old dart sewing mode starts from the "0" point ( hip bottom point
). But new dart sewing mode starts from right side and ends on the hip bottom point promises free from dimples completely. |
| PATENTED BOBBIN THREAD TAKE UP | Free from puckerring against the very light like georzette or lining is
promised. Patented bobbin thread take up allows free from hitch-stitching when reverse sewing or all direction sewing. Also, take up length is adjustable against such thicker or strechable fabrics. |
| LOADING PLATE WITH VACUUMING | loading plate with vacuuming can hold down lining, knitted, georzette fabrocs
tightly, smoothly so that dart sewing can be free from hand working. This is mechanical big advanageous point. |
| "LCD" TOUCH PANEL SUPPORTS HIGH PRODUCTIVITIES | With the programmable sewing patterns, the designed sizes can be entered
or adjustable. Programmable patterns are allowed upto 50 and can read directly. Device mechanical adjustment with touch panel, this can save troublesome handling and help high performance. 1) Former dart seamer is requests test sewing repearting takes much time for width to an accurate length. NC DART SEAMER U-3702-E is just enough to enter the designed length and width freely. 2) AUTO running mode allows you to choose up to 4 x patterns from 50 x patterns stored on the U-3702-E, including variety of tuck and dart, and you cam sew those 2 or 3 or 4 patterns sequencially according to your desired order. For example, you can pick up 2 x tuck patterns ( one is deeper, another one is shallower ) and you can operate those 2 patterns alternatively for front panel of triusers, or you can pick 2 x tuck ( deeper/shallower ) and you 2 x dart patterns ( longer/shorter ) to complete both front panel and back panel of thousers at once. This procedure does not require any replacement of guide rail or adjustment of angles. 3) Adjustable to enter rail feeding speed & back stitching speed optimumly on the LCD panel. 4) Avasilable the finest adjustment to the "0" point according to the fabric thickness, by 0.1 ㎜ unit. |
| FREE PROGRAMMABLE DART PATTERNS | Available dart sewing area 30 × 200 ㎜ freely and simply. |
| FREE FROM "0" POINT SEAMING | New NC dart seamer can be programmable to the free from dimples. |
| HEAVY THICKER FABRICS | Mono leaf-spring keeper can hold down the heavy fabrics tightly but free from scratching. Keeper-edge is aligned accurately and completely. |
| SEWING CYCLE TIME SHORTEN | With direct-drive sewing machine head, trimming time, stopping time speed, and feeding-back speed are shortened extremely. |
| MAINTENANCE AND SAFETY MECHANISM | For safety mechanism, Plate can return to the home position automatically
when hand or fingers are clamped by careless. For machine maintenance, Machine head and other accessoried devices can be tilted altogether, helps the maintenance simply, quickly. No need of readjustment is allowed after maintenance. |
| BOBBIN THREAD COUNTER | Bobbin counter indicates bobbin balance when bobbin thread gets to shortage. With Red caution. |
| THREAD BREAKAGE DETECTOR | Thread-Breakage Detector makes sewing cycle instantly when thread is broken to avoid mishandling in advance. |
| OUTPUT | Dart length 10cm 6,000 darts per 8 hours ( 20% allowance ) |
|---|---|
| MAIN DEVICE | ◆ LCD touch panel ◆ XY Pulse motor ( NC program ) ◆ Vacuumed loading plate ◆ Keeper with gauge ◆ Sandwich type keeper ◆ Stacker ◆ Thread Breakage Detector ◆ Air gun |
